Description

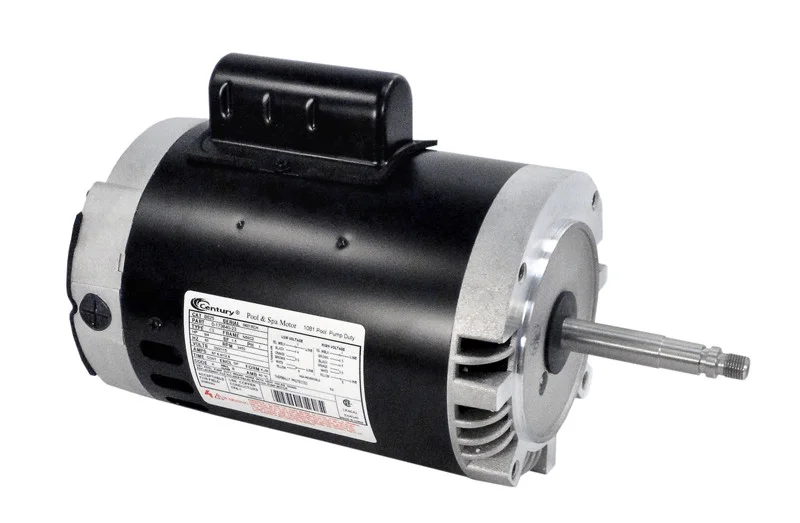

Century(R) Polaris B625 Replacement Pool Cleaner Pump Motor; 0.75 HP, 3450 RPM, 115/230 V, 56CZ, Threaded Shaft
- Switchless
- CW Non-Reversible
- 1/2-20 UNF-2A RH threaded shaft
| Ambient Temperature | 40 deg C |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Flange Material | Aluminum |
| Frame | 56CZ |
| Frequency Rating | 60 Hz |
| Full Load Amps | 6.4/12.8 A |
| HP | 0.75 |
| Insulation Class | B |
| Item | Replacement Pool Cleaner Pump Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Position | Horizontal |
| Mounting Type | C-Face, No Base |
| Overall Length | 14.03 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Series | Polaris |
| Service Factor | 1.50 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 3-3/4 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, CSA Certified |
| Sub Brand | Century® |
| Thrust Horsepower | 1.13 |
| Type | CS |
| Voltage Rating | 115/230 V |
