Description

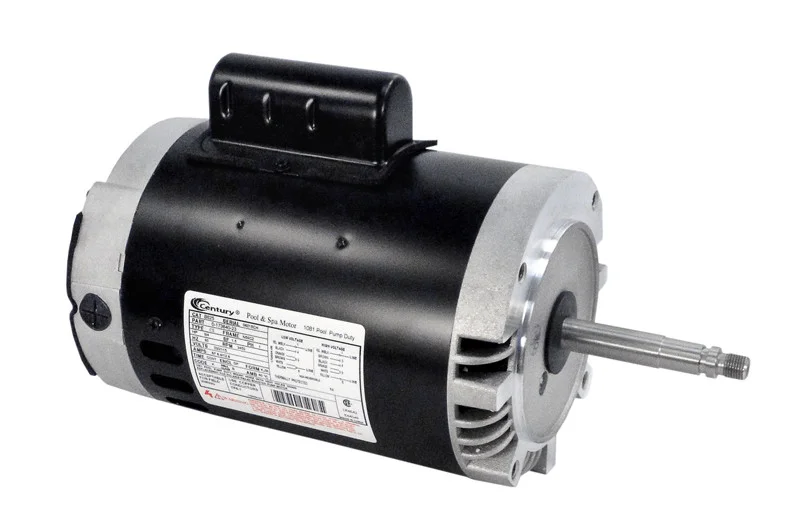

Century(R) Centurion(R) B122 Full-Rated Pool and Spa Pump Motor; 1 HP, 3450 RPM, 115/230 V, 56C, Keyed Shaft
- Switchless
- High service factor
- Aluminum NEMA “C” brackets
- Non California Compliant
| Ambient Temperature | 50 deg C |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Flange Material | Aluminum |
| Frame | 56C |
| Frequency Rating | 60 Hz |
| Full Load Amps | 7.2/14.4 A |
| HP | 1 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Design | PSC |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face, No Base |
| Number of Speed | 1-Speed |
| Overall Length | 11.89 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Series | Centurion® |
| Service Factor | 1.40 |
| Shaft Design | Keyed |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 2-1/16 Inch |
| Standards Approvals | UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642) |
| Sub Brand | Century® |
| Thrust Horsepower | 1.4 |
| Type | Full-Rated, CX |
| Voltage Rating | 115/230 V |
- Technical Info
- Brochure
- Operational Manual
