Description

INYO # 3792-013 HAYWARD # WGX1048EGR THIS IS COMPLIANT WITH THE ASME/ANSI A112.19.8-2007 REGULATIONS AS SPECIFIED BY THE VIRGINIA GRAEME BAKER POOL AND SPA SAFETY ACT THIS IS A VGB-2008 COMPLIANT COVER

************************************************

GENERAL DESCRIPTION: 8″ ROUND RETROFIT MAIN DRAIN COVER, GRAY

************************************************

BASIC SPECS: CENTER TO CENTER SCREW HOLE MEASUREMENT: 6″ USAGE: APPROVED FOR FLOOR ONLY USAGE SPECS SHOWN BELOW ARE FOR A SINGLE UNIT FLOOR: 125 GPM LIFE: 7 YEARS TOTAL OPENING: 8.1 SQ INCH 37.8 GPM @ 1.5 FPS

************************************************

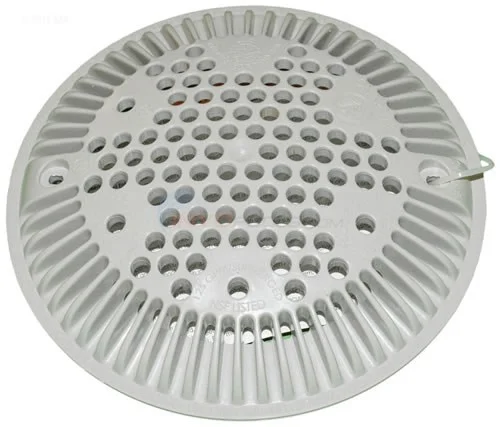

DETAILED DESCRIPTION: THIS IS THE HAYWARD WGX1048E MODEL ROUND FLOOR COVER THIS IS AN ANTI-ENTRAPMENT RETROFIT COVER AND SCREWS THE TOP IS SOLID WITH A GRATED OPENING ALL ROUND THE OUTSIDE THERE ARE A LARGE NUMBER OF ROUND HOLES IN THE TOP MATERIAL: PLASTIC COVER, STAINLESS STEEL SCREWS COLOR: GRAY SHAPE: ROUND

************************************************

COVER DIMENSIONS: COVER OUTSIDE DIAMETER: 7-3/4″ (A) (MAIN FLANGE RING) COVER TOTAL HEIGHT: 1-5/8″ (B) MAXIMUM HEIGHT ABOVE MAIN DRAIN BODY: 1-1/2″

************************************************

SCREW HOLES: 2 SCREW HOLES SPACED 6″ APART MEASURED AT THE CENTER OF THE HOLE

************************************************

SCREWS: THERE ARE 4 SETS OF SCREWS INCLUDED THIS ALLOWS THE COVER TO BE WITH THE VARIOUS HAYWARD ROUND MAIN DRAINS AND FRAME AND COVERS, BOTH CURRENT AND OLDER VERSIONS 2 SCREWS – #10-24 X 15/16″ MACHINE THREAD (PART# WG1030Z2AM SET OF 2) 2 SCREWS – #10-24 X 1-1/4″ MACHINE THREAD (PART# WG1030Z1AM SET OF 2) 2 SCREWS – #12 X 1-1/2″ SELF TAPPING (PART# WG1030Z2A SET OF 2) 2 SCREWS – #12 X 1-1/4″ SELF TAPPING (PART# WG1030Z1A SET OF 2)

************************************************

MARKINGS: HAYWARD WG1048E IS MOLDED INTO THE COVER THE SPECS REQUIRED BY THE VGB-2008 LAW ARE ALSO MOLDED ON THE COVER
