Description

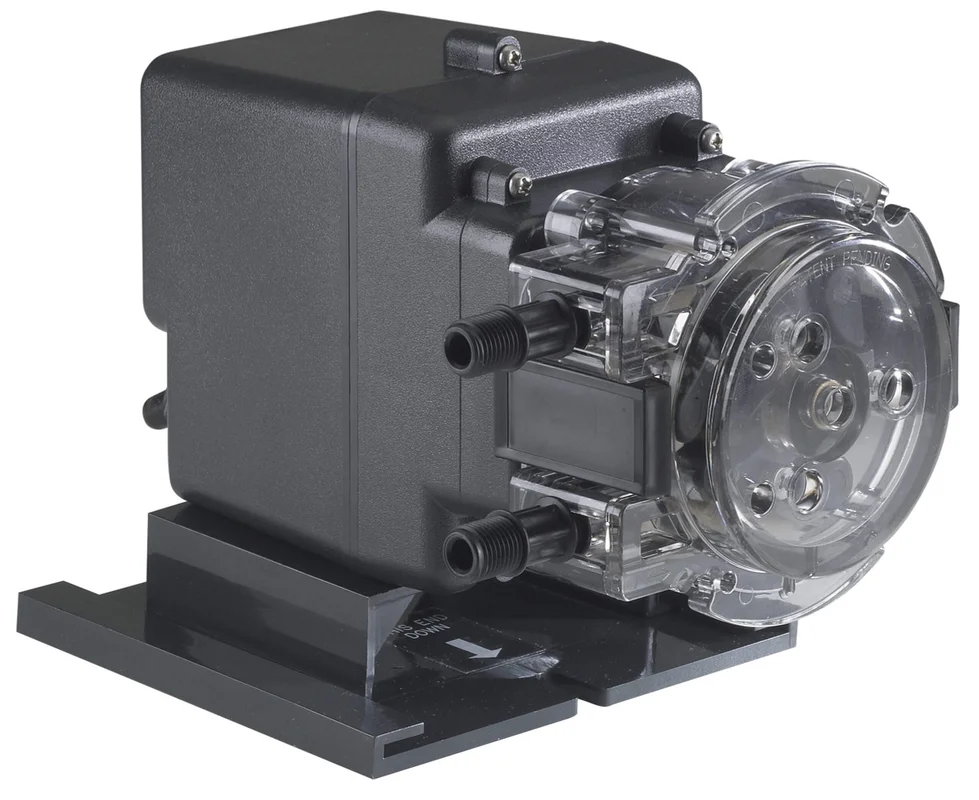

Stenner Pumps 45MFL3A1SUAA Classic 45MP3 Single Head Fixed Output Pump 22GPD 25PSI 120V 60Hz .25″ White Suction/Discharge

The Single Head Fixed Output injection pump is one of the varieties in the Classic Series identified by 45MF or 85MF in the item number prefix.

This peristaltic metering pump injects solutions at a fixed rate and can be utilized as a component for proportional dosing for drinking water disinfection foranimal healthor residential applications. Itcan also be installed with a controller for sanitizing a swimming pool. Great news for installers in thecommercial poolindustry, the Classic Series single head fixed pump has been tested by ETL to conform to the ANSI/NSF standard 50 when used with ANSI/NSF 50 listed controllers. Additional applications include pH control, oxidation, corrosion and scale control and more.

The pump is also a component of Stenner’s pre-assembled panel system theProportional Injection System. The Proportional Injection System doses solution proportional to a water system’s flow rate based on the water volume. Awater metersends a signal to Stenner’sPCMwhich actuates the fixed output pump. The system is suited for constant pressure (variable speed) well pumps, poultry and livestock houses, irrigation and systems with demand based backup wells and any application with varying flow rates.

If a pre-assembled system isn’t your preference, the pump, PCM and water meter are also available separately. Refer to thechemical resistance guideto determine the compatibility of the wetted components with the solution you want to pump

• Convert one model to another; not necessary to purchase a new pump.
• Tube replacement without tools with the patented QuickPro®pump head.
• The pump is built with two detachable components; the motor and the pump head that can be separated without tools.

The output is not adjustable and is determined by the rpm of the motor gears and the size of the pump tube. The motor’s output shaft rotates at a fixed rpm which drives the roller assembly within the pump head.
