Description

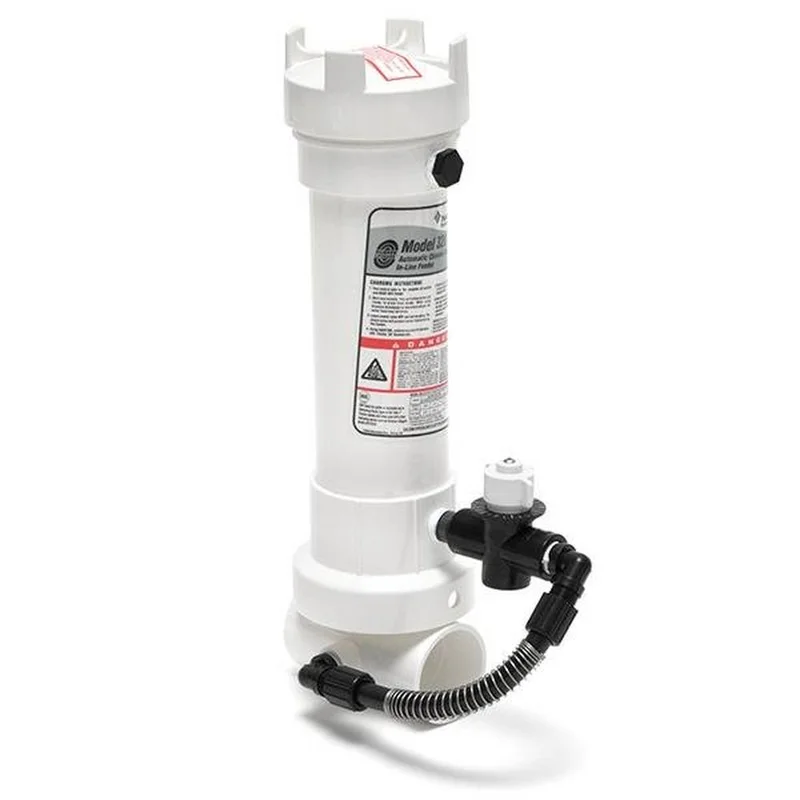

Pentair Rainbow 320 Automatic In-Line Chemical Feeder holds 11 large or 98 small bromine or slow dissolving chlorine tablets and treats 6500 to 27000 gallons.

• No special venting required
• Permanent installation in return line of new or existing pools or spas
• Standard with 2″ slip PVC fitting and adapters for 1-1/2″
• Unions not included
• Hold 11 large or 98 small bromine or slow-dissolving trichlor tablets
• NSF listed
• 50 PSI maximum operating pressure
• Easy tablet level monitoring
• Treats 6500 to 27000 gallons bottom feed and 18000-70000 top feed
• Dimensions: 17-3/4″H x 5″W x 10″D

Installation Instructions:

• Ensure the chemical feeder is compatible with your pool equipment.
• Prepare the chemical feeder and plumbing.
• Cut and connect the pool’s return line, then install the couplings to extend the pipes for the feeder.
• Secure the chemical feeder by attaching it to the return lines, following the flow direction.
• Please reference additional installation instructions in the owner’s manual in the Guides and Documentation section below.
• Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.

• California Residents

  System Type:	In-Line
  Feeder Type:	Bromine/Chlorine Tablets
  Installation Type:	Residential
  Product Type:	Chemical Feeder
  Manufacturer:	Pentair
  Warranty:	1-Year
