INYO # 4800-30 HAYWARD # SX200QN

Save On Ten Pack -Lateral, Hayward S180T/S200/S210S, Ball Pivot Style 10-Pack – SX200QNPAK10

************************************************

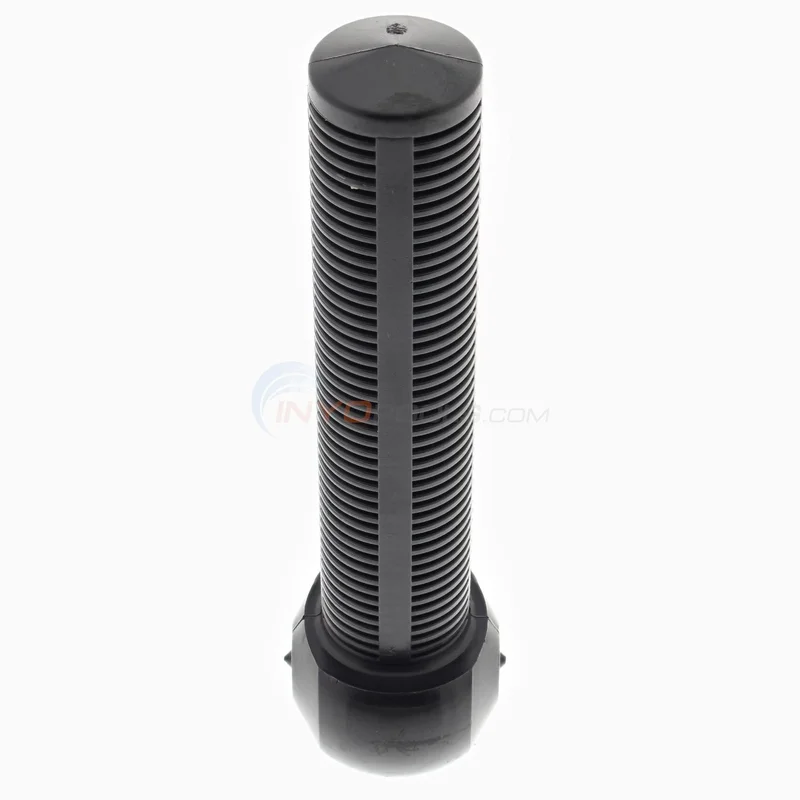

GENERAL DESCRIPTION: PIVOT TYPE LATERAL THIS IS A HAYWARD PIVOT TYPE LATERAL ON A NUMBER OF FILTERS. THERE IS A BALL WITH A LOCKING TAB AT ONE END OF THE LATERAL. THE BALL FITS INTO THE HUB AND ALLOWS THE LATERAL TO BE SWIVELED UP AND DOWN TO MAKE REPLACING THE STANDPIPE ASSEMBLY A LOT EASIER. WHEN THE STANDPIPE IS IN PLACE, THE LATERAL IS SWIVELED BACK DOWN TO OPERATING POSITION

************************************************

MATERIAL: VARIOUS COLOR PLASTIC TYPE: SWIVEL PIVOT

************************************************

DIMENSIONS: OUTSIDE DIAMETER 7/8″ (A) DIAMETER OF THE MAIN PART THE BALL IS ABOUT 1-1/4″ X 1-3/8″ THE BALL ADDS 1″ TO THE TOTAL LENGTH OF THE LATERAL TOTAL LENGTH: 5-1/8″ (B) LENGTH WITHOUT BALL: 4-1/8″

************************************************

MARKINGS: THERE ARE NO MARKINGS
