Description

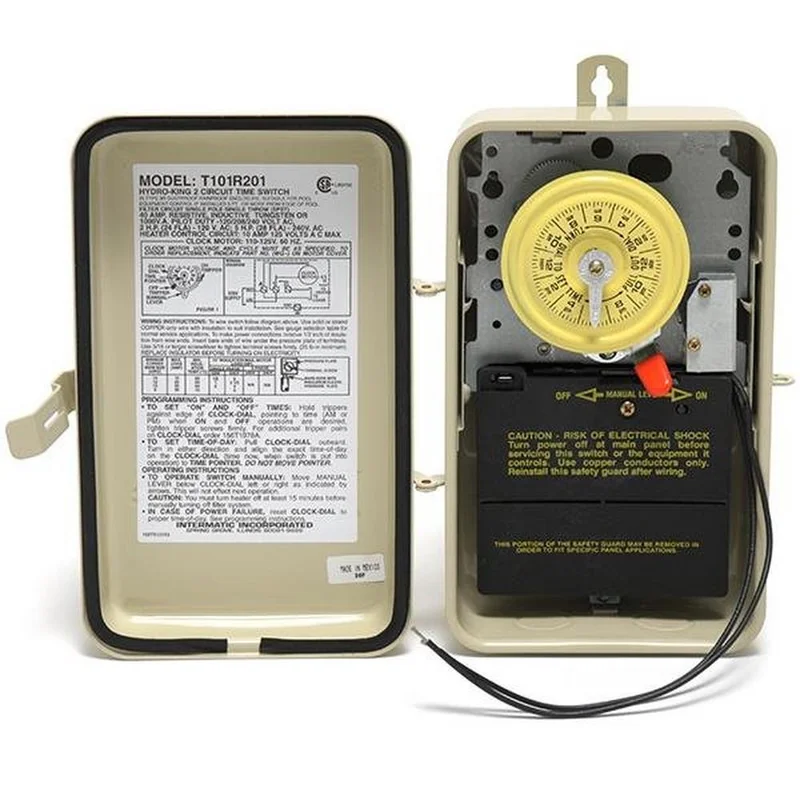

Intermatic Single Time Clock 125V Timer with Heater Delay with Metal Enclosure – T101R20

• Enclosure: Beige electrical grade plastic.
• Size: PB300 Series: 2-3/8 (6.0 cm) high and wide. EB suffix: 1-1/18 (28 cm) deep. E suffix: 7/8 (2.2 cm) deep.
• Electrical Rating: A = 16 Amp resistive, 0.5 HP motor load 24, 120 or 240 volts, 50-60 Hz; B = 20 amp resistive, 10 amp (1200 watt) tungsten, 16 FLA (1 HP) motor load, 720 VA pilot duty – 120 volt, 50-60 Hz; C = 20 amp resistive, 12 FLA (2 HP) – 240 volts, 50-60Hz
• Agency Approval: UL

Installation Instructions:

• Ensure the automatic control system is compatible with your pool equipment.
• Install the control panel near your pool equipment and connect it to a power source.
• Connect the system to your pool pump, heater and other pool equipment by following the manufacturer’s instructions.
• Program the system and connect to Wi-Fi if applicable.
• Please reference additional installation instructions in owner’s manual in Guides and Documentation section below.
• Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
