Description

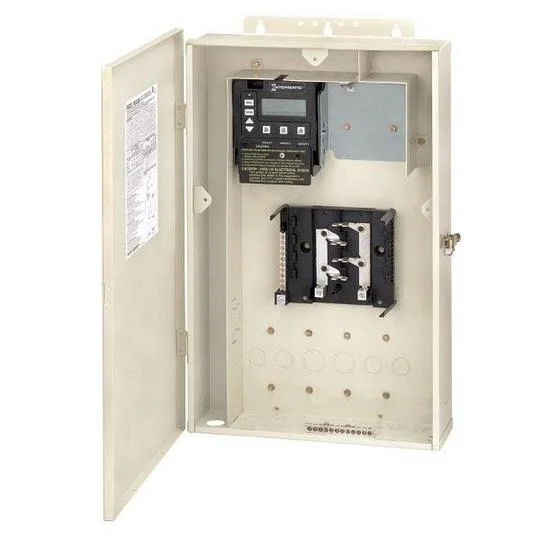

Intermatics Mini-PE Digital Controls couple features of our compact T100 Series mechanical time switches with the convenience of digital automation.

• Case: 26.0 (66.3 cm) high x 18.0 (45.9 cm) wide x 5.5 (14.0 cm) deep, 0.048 steel with electrostatically applied light beige finish.
• Knockouts: Two combination 3/4 1 1-1/4 and eleven combination 1/2 3/4″ knockouts on the bottom. Two 3/4 1 combination and four combination 1/2 3/4″ knockouts on the back. Low voltage compartment has two combination 1/2 3/4″ knockouts and one 3/4 hole with a shutter bushing installed. Two combination 3/4 1 and one combination 1/2 3/4knockouts. One 1-3/4 x 2-3/4 knockout on the right side.
• Panel Rating: 125 Amp 120/240 V.A.C. or 120/208 V.A.C. single phase
• Switch Rating: P1353ME and P4243ME
• Agency approval: CSA/C-US
