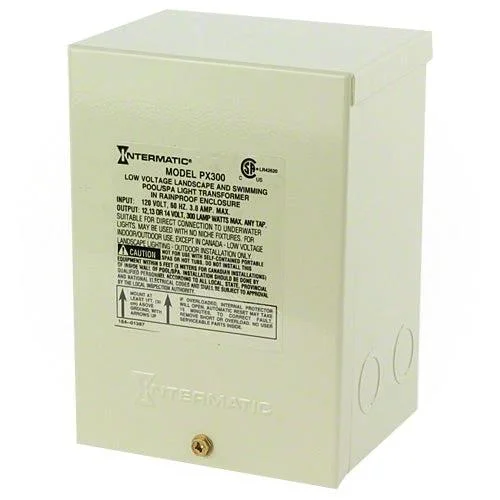

Intermatic 300 Watt Transformer PX300

Intermatic Safety Transformers are specifically designed to supply 12 volts to pool and spa lights, submersible fixtures and outdoor garden lights. A grounded shield between the primary and secondary windings assures safe operation and the built-in circuit protection will disconnect power to the transformer in case of defect or overload.

The 300 Watt Transformer can operate up to 20 Pentair Landscape Lights or up to 6 LED Swimming Pool Lights.

PX300 Transformer Features:

• Stainless Steel Enclosure with light beige finish and mounting brackets at the top and bottom.
• Total of 10 combination 1/2″ – 3/4″ knockouts, (2) Right Side, (2) Left Side, (2) Back and (4) on Bottom.
• Withstands harsh environments such as high heat, humidity and chemicals.
• Input: 120 VAC, 3 Amp
• Output: 12, 13 or 14 Volt
• CSA C/US Listed

Dimensions:

• 7-1/4″ Height X 5-1/2″ Width X 4-1/2″ Depth

Intermatic PX300
