Description

INYO # 5190-036 VICO/BALBOA # 1212218 OLD VICO # PPUL20IMP

************************************************

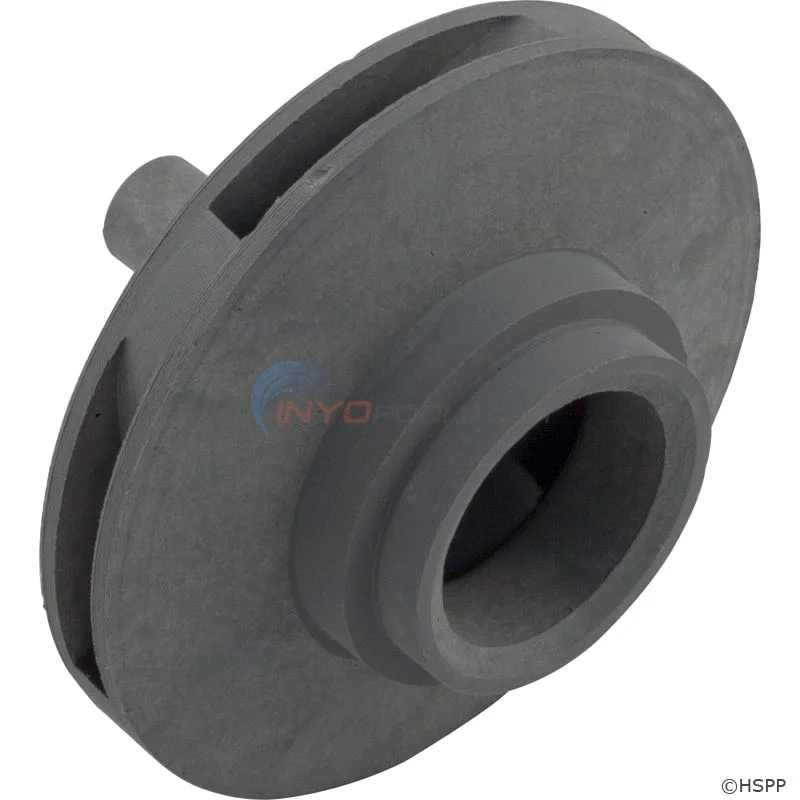

GENERAL DESCRIPTION: CLOSED FACE GRAY IMPELLER, 2 HP THE INLET OPENING IS DOUBLE STEPPED THE SHAFT SIDE OF THE IMPELLER IS FLAT THE INLET SIDE SLOPES SLIGHTLY FROM THE EDGE TO THE INLET THIS HAS A STRIPE ON THE SHAFT TO IDENTIFY THE IMPELLER

************************************************

MATERIAL: GRAY PLASTIC TYPE: CLOSED FACE NUMBER OF VANES: 5

************************************************

DIMENSIONS: OUTSIDE DIAMETER 4-7/16″ (A) TOTAL LENGTH: 3-3/8″ OUTSIDE THICKNESS AT EDGE: 1/2″ (B) INSIDE THICKNESS AT EDGE: 9/32″ SHAFT LENGTH: 1-7/8″ SHAFT DIAMETER: 11/16″ INLET OPENING OUTSIDE DIAMETER: 2″ INLET OPENING INSIDE DIAMETER: 1-1/2″ THE INLET OPENING IS BEVELED ON THE INSIDE THE SECOND STEP BELOW THE INLET IS 2-3/8″ DIAMETER INLET OPENING LENGTH: 3/4″ (TOTAL OF BOTH STEPS) EACH STEP IS ABOUT 3/8″

************************************************

MARKINGS: STRIPES ON SHAFT STARTING FROM THE END THESE ARE: RED SPECIAL NOTE: CURRENT IMPELLERS ARE BEING MADE WITH NO STRIPES ON THE SHAFT
