Description

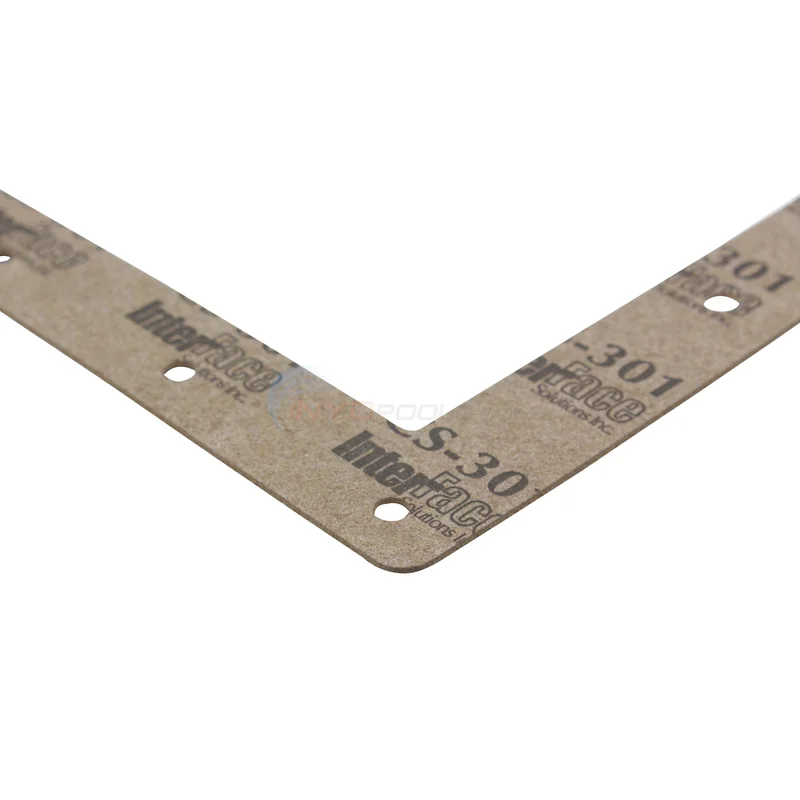

INYO # 9381-04 PENTAIR # 85003400 GENERAL DESCRIPTION: THIS IS A PENTAIR / AMERICAN PRODUCTS STANDARD SMALL SKIMMER FACEPLATE GASKET MATERIAL: CARDBOARD SHAPE: RECTANGULAR WITH A TOTAL OF 10 SCREW HOLES AND 2 EXTRA HOLES THERE ARE 3 SCREW HOLES ON THE TOP AND THE BOTTOM THERE ARE 2 SCREW HOLES AND ONE EXTRA HOLE ON EACH SIDE.

*******************************************************************************

DIMENSIONS: OUTSIDE LENGTH: 7-1/2″ (A) OUTSIDE HEIGHT: 7-1/8″ (B) INSIDE LENGTH: 6-1/16″ INSIDE HEIGHT: 5-5/8″

*******************************************************************************

SCREW HOLES: THESE ARE 1/4″ IN DIAMETER EXTRA HOLES: THESE ARE 1/4″ IN DIAMETER TOP AND BOTTOM: THERE IS A SCREW HOLE IN THE CENTER THE 2 SCREW HOLES NEXT TO THE CENTER HOLE ARE 2-3/8″ FROM THE CENTER HOLE SIDE: THERE IS AN EXTRA HOLE IN THE CENTER THERE IS A SCREW HOLE ABOVE AND ONE BELOW THE CENTER HOLE THE 1/4″ SCREW HOLES ARE 1-7/8″ APART AT THE CENTER

*******************************************************************************

MARKINGS: THERE ARE NO MARKINGS

*******************************************************************************

SUBSTITUTES: THE 4042-06 CARDBOARD GASKET WILL REPLACE THIS, BUT IS LARGER ON THE OUTSIDE THE 4041-08A CARDBOARD GASKET WILL REPLACE THIS, BUT IS LARGER ON THE OUTSIDE THERE SHOULD BE OTHERS, JUST CHECK THE HOLE PATTERN NOTE DATE: 5-4-2009
