Description

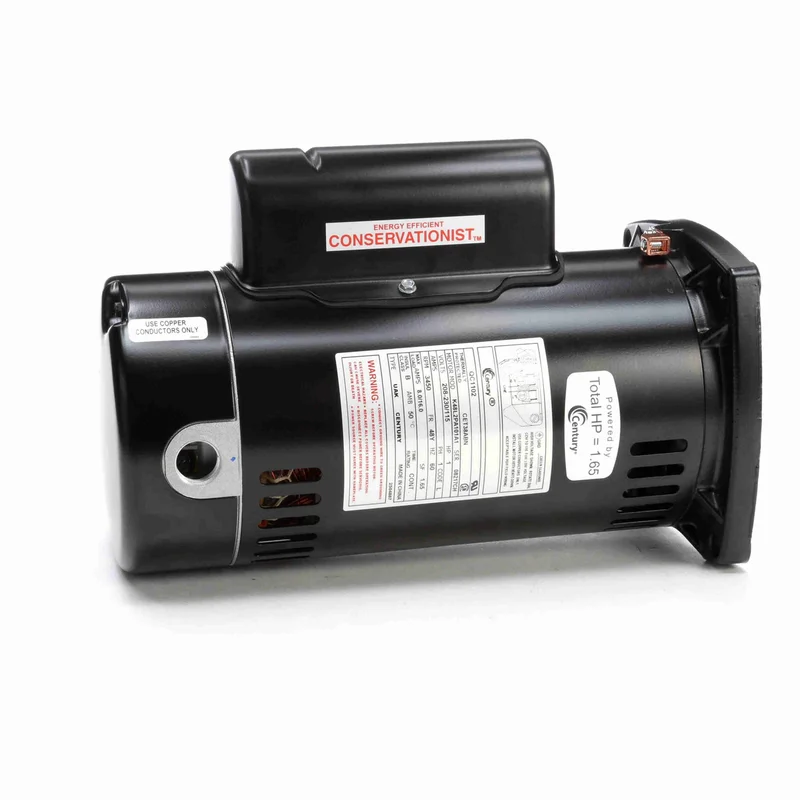

The 1 HP Square Flange Threaded Shaft Single Phase Horizontal Pool Pump Motor is the perfect addition to any pool maintenance equipment collection. This energy-efficient pool pump motor features a stainless steel shaft for corrosion protection and sealed ball bearings for reliable and smooth operation. The pump motor has a threaded shaft that allows for convenient and direct mounting, while its open drip proof design allows air to circulate through the windings.In addition to its main features, this motor boasts an output HP of 1 HP, frequency of 60 Hz, and a service factor of 1.65. Its output KW is 0.75 kW, and it has a voltage range of 208-230/115 V. The motor’s speed is 3450 rpm, and it has two poles and one phase. Its insulation class is B, and it has a square flange mounting with a drive end bearing that is ball-shaped. The motor’s enclosure is an open drip proof design that allows for air to circulate through the windings.This motor is thermally protected and has a motor orientation that is horizontal. It has an electrical type that is capacitor start capacitor run and a rotation that is counter clockwise pump end. The motor’s dimensions include a shaft diameter of 0.625″, a shaft extension of 0.906″, and a frame length of 8.69″. Its material is made of stainless steel and its frame is made of rolled steel.Overall, this motor is a reliable and efficient option for pool owners looking to maintain their pool equipment without any hassle. Its energy-saving design and convenient features make it an excellent investment for any pool maintenance needs.
