Description

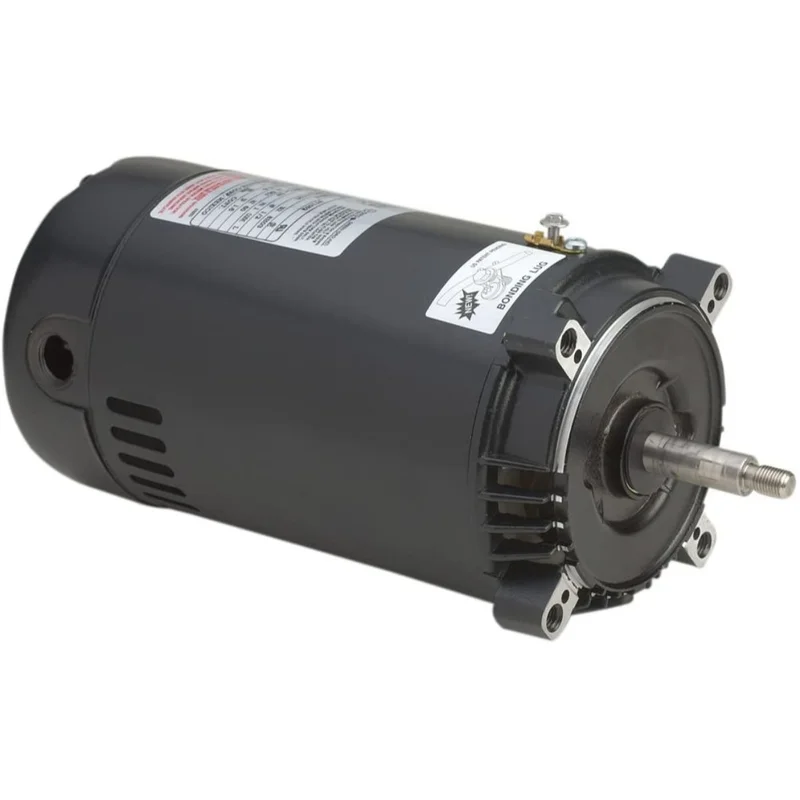

The 0.75 HP C Face Threaded Shaft Horizontal Single Phase Pool Pump Motor is designed to protect your swimming pool with its corrosion-resistant outer shell. The motor is easy to install with accessible wiring and ensures a suitable overflow to tackle any moisture issues. This high-quality pool pump motor features a sealed switch design, a 304 bearing shaft end, and a 303 stainless steel shaft, with a capacitor start-capacitor run for improved efficiency. It operates with a continuous duty and a service factor of 1, making it reliable and durable for long-term use. The motor has a UL 1081 design, a frame size of 56J, and an automatic protector for safety. It outputs 0.75 Hp and has a current of 5.5/11.0 A, with a frequency of 60 Hz, and an output KW of 0.56 kW. The motor runs at a speed of 3450 rpm, with an ambient temperature of 50°C, a phase of 1, and insulation class of B. Its enclosure is open drip proof with CSA recognition and an electrical type of cap start motor. The rotation is a counterclockwise pump end, and the motor orientation is horizontal with a threaded shaft type. It has 2 poles, a C face mounting, and a drive end bearing of BALL. The motor has dimensions of 7.38″ frame length, 2.56″ shaft extension, 13.20″ overall length, and a 0.62″ shaft diameter. It is made of stainless steel and rolled steel for added durability.
