Description

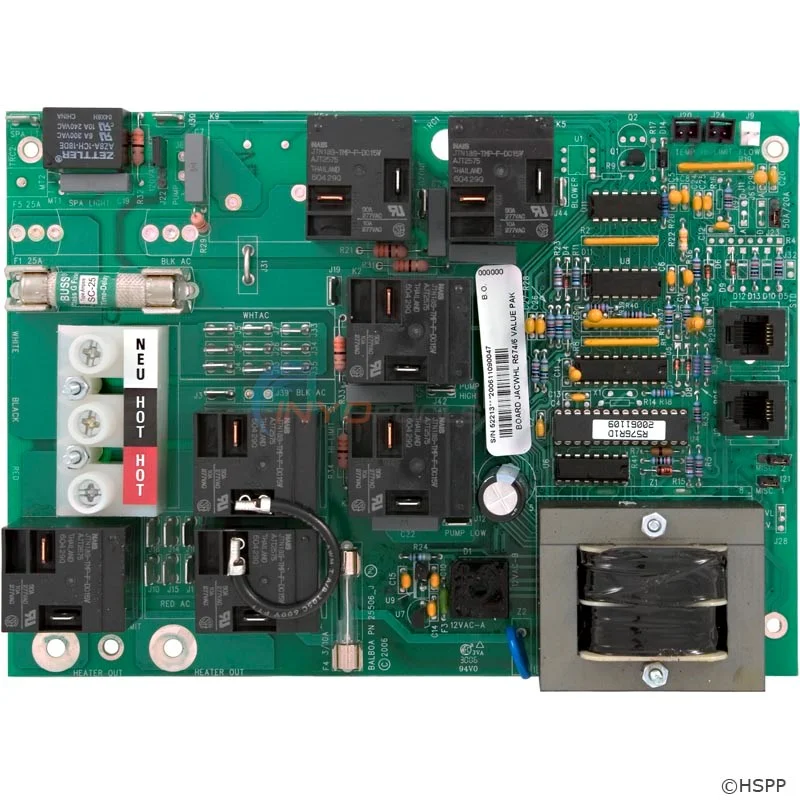

BALBOA BOARD R574/6 FOR JACUZZI VALUE PAK

CHIP # R576R1C

DIMENSIONS: 6″ X 8 1/4″

THIS IS A CIRCUIT BOARD MADE BY BALBOA THAT IS ON THE JACUZZI WHIRLPOOL BATH VALUE SYSTEM THIS SYSTEM IS ON A LOT OF THE SPAS SOLD BY HOME DEPOT THAT ARE MADE BY JACUZZI WHIRLPOOL BATH

THERE ARE TWO VERSIONS OF THIS: R574 AND R576 R576 HAS (2) SINGLE SPEED PUMP R574 HAS (1) TWO SPEED PUMP THIS BOARD WILL WORK FOR BOTH SYSTEMS, THERE IS A JUMPER ON THE BOARD THAT CONTROLS THIS

2 FOUR PIN FEMALE PHONE PLUGS

120 VOLT – 12 VOLT TRANSFORMER

TEMP SENSOR WITH THIS IS INYO # 9711-100 (BALBOA # 30352)

HI LIMIT SENSOR IS INYO # 9711-101 (BALBOA # 32016)

ORIGINAL TEMP SENSOR WAS BALBOA #30344 THE 32016 REPLACES THIS ONE DIFFERENCE IS ONLY THAT ORIGINAL 30344 HAD A 12″ CORD THE REPLACEMENT 32016 HAS A 24″ CORD SPASIDE CONTROL TO USE WITH THIS IS 9705-36
