Description

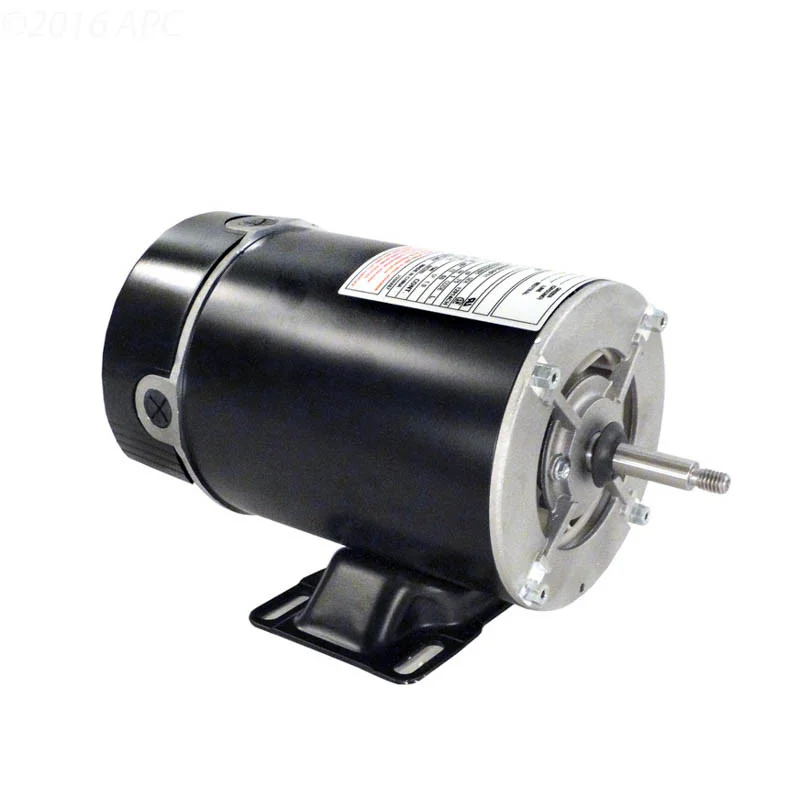

Century(R) Flex 48 BN40SS Thru-Bolt Pool and Spa Pump Motor; 2 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
- 12 3 o’clock conduit entries
- 3/8-16 UNC-2A RH threaded shaft
Specifications
| Ambient Temperature | 40 deg C |
| Application | Spa, above ground swimming pool and jetted tub pumps |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 10.0/20.0 A |
| HP | 2 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | Thru-Bolt, Rigid Base |
| Number of Speed | 1-Speed |
| Overa lL ngth | 13.33 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Series | Flex 48 |
| Service Factor | 1.00 |
| Shaft Design | Threaded |
| Shaft Diameter | 1/2 Inch |
| Shaft Height | 3-1/2 Inch |
| Shaft Length | 2-5/16 Inch |
| Shaft Material | Stainless Steel |
| Standards Approvals | UL 1081/1563/1795 Approved, UL Recognized (E14663), CSA Certified (LR4642) |
| Sub Brand | Century® |
| Thrust Horsepower | 2 |
| Type | CS |
| Voltage Rating | 115/230 V |
