Description

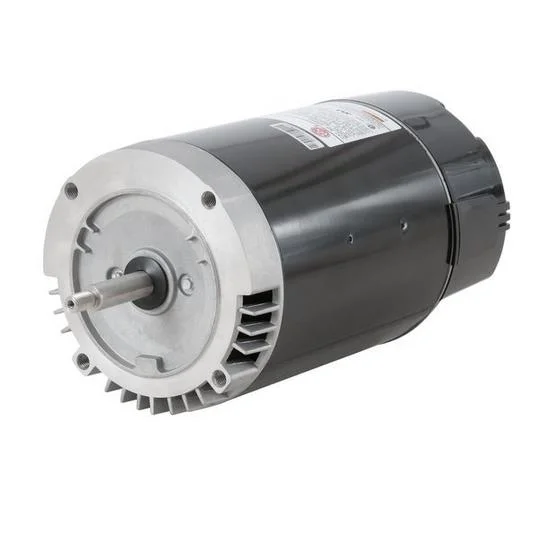

The Nidec U.S Motors ASQ125 48Y Square Flange Single Speed 1-1/2HP Up-Rated Pool and Spa Motor is a powerfully designed motor for your pool or spa.
- Two compartments
- Shaft Threads1/2-20 UNF-2A
- 50 Degrees Celsius Ambient
- 1081 Design
- Continuous Duty
- Voltage Selection Device (Dual Voltage Only)
- Service Factor: 1.04
- RPM: 3450
- 8.5/17.0A 115V/230V
- Length without Shaft: 12.28
Installation Instructions:
- Ensure the pool motor is compatible with your pool pump.
- Turn pump power off during replacement.
- Check voltage requirements on your current setup.
- Always replace the mechanical pump seal. It’s recommended to replace all gaskets when replacing the motor.
- Turn on the pump to test for leaks and pump operation.
- Please reference additional installation instructions in owner’s manual in Guides and Documentation section below.
- Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
| Flange Type: | Square Flange |
| Service Factor: | 1.00 – 1.25 |
| Speed Settings: | Single Speed |
| Voltage: | 115V / 230V |
| Horsepower: | 1-1/2 HP |
| Rating Type: | Up-Rated |
| Product Type: | Pool Part |
| Motor Frame: | 48 Frame |
| Energy Efficiency: | Standard |
